80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank

80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank
80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank 80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank 80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank 80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank

Ampliación de imagen :  80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank

Datos del producto:
Place of Origin: CHINA
Nombre de la marca: GNEE
Certificación: SGS
Pago y Envío Términos:
Minimum Order Quantity: 1
Precio: depend on product
Packaging Details: wooden box
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Contacto

80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank

descripción
Item: cryogenic storage tank Color: white
Keywords: lng storage tank for sale Package: Sea or land transportation
Advantage: Long Service Time Working Temperature: -196 - 0 ℃
Working Years Design: 20years Piping Material: Stainless steel
Insulation: vacuum powder Capacity: 5000 liters
Resaltar:

80L hydrogen cryogenic cylinder

,

5 M³ liquid oxygen storage tank

,

cryogenic storage tank with warranty

80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage Tank
Product Attributes
Attribute Value
Item cryogenic storage tank
Color white
Keywords lng storage tank for sale
Package Sea or land transportation
Advantage Long Service Time
Working Temperature -196 - 0 ℃
Working Years Design 20years
Piping Material Stainless steel
Insulation vacuum powder
Capacity 5000 liters
Product Description

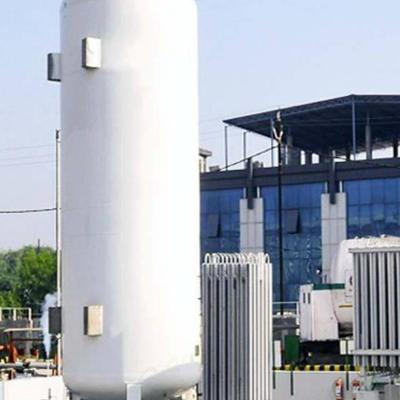

Cryogenic Storage Tank is a kind of high-performance vacuum insulated container, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications, can provide up to 9.2 cubic meters per hour continuous flow with a delivery pressure of approximately 100psig (6.9bar/690Kpa).

Product Parameters
Inner tank/outer tank material S30408/Q345R(CO2inner tank:16MnR)
Operation pressure 0.2/0.8/1.2/1.6/2.8 MPa
Volume (m3) 5 10 15 20 30 50 60 100 150 200 250
Inner tank size (m) 1.4 1.8 1.8 2 2.2 2.5 2.7 3 3.3 3.5 3.6
Outer tank size (m) 1.9 2.3 2.3 2.5 2.7 3 3.2 3.5 3.8 4 4.1
Daily evaporation rate(%/d)o2 0.4 0.36 0.35 0.33 0.29 0.23 0.21 0.16 0.14 0.13 0.12
80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank 0 80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank 1 80L 5 M³ Hydrogen Cryogenic Cylinder Liquid Oxygen Storage tank 2
Applications
  • To fill liquid oxygen for medical use, as an equipment for providing LO2
  • To fill oxygen for the cutting, welding, and heating of metal in industry
  • To fill liquid argon for argon-arc welding and other protection occasion of argon
  • To fill liquid nitrogen for the protective use by high nitrogen, and the field of food, pharmaceutical, biotech, superconduction etc.
ABOUT US

Our company is a professional manufactory of large storage tanks, it contains the design, provided steel material and overseas installation. Professional engineers and construction teams, all the tanks are made in accordance with international standards.

The large storage tanks of various specifications and models can be made. We can choose different types and different materials storage tanks according to the properties of the materials.

If you want to know about certain products, you can send an email to info@gneeheatex.com.
