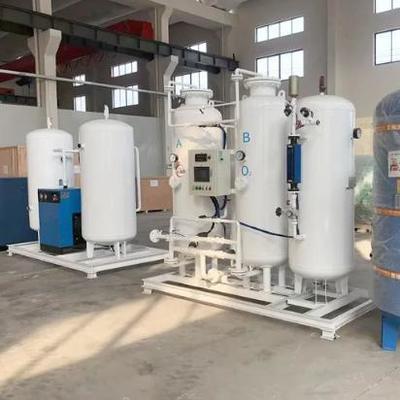

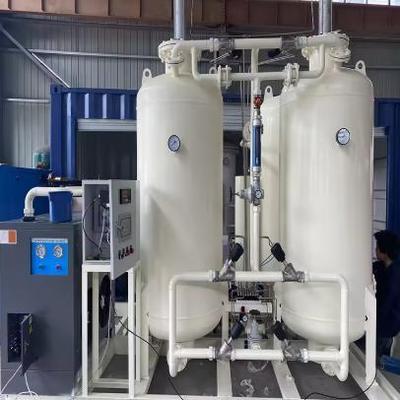

Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production

Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production
Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production

Ampliación de imagen :  Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: GNEE
Certificación: SGS
Pago y Envío Términos:
Cantidad de orden mínima: ≥1sets
Precio: According to the product
Detalles de empaquetado: Embalaje de caja de madera
Condiciones de pago: L/C, D/A, D/P, T/T, Moneygram, Western Union
Contacto

Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production

descripción
Producto: Generador del oxígeno de VPSA Salida de nitrógeno: 140Nm3/hr
Área de piso: Pequeño Salida de oxígeno: No más de 270 Nm3/h
Color: Brillante o personalizado Rango de presión: 1.6 MPa
Consumo: De ahorro de energía Solicitud: Producción de oxígeno
Presión de funcionamiento: 1.6MPA Proceso: VPSA
Material interno: Acero inoxidable Presión de prueba: 0.8MPA-1.6MPA
Garantía: 1 año Tecnología: Adsorción de balanceo de presión de vacío (VPSA)
Resaltar:

Energy-saving VPSA Oxygen Generator

,

Small Floor Area Oxygen Production Equipment

,

Stainless Steel VPSA Oxygen Plant

93% 100-7500Nm3/h VPSA Oxygen Generator for Efficient Air Separation Solutions
The vacuum pressure swing adsorption (VPSA) oxygen production device operates at normal temperature conditions, utilizing molecular sieve technology to selectively adsorb nitrogen from air. By reducing pressure in the adsorption tower to desorb nitrogen from the molecular sieve, the system achieves continuous adsorption-desorption cycle operation, producing oxygen with purity levels of 80%-95% or higher.
VPSA-O2 System Parameters (oxygen purity: 93%)
Model Oxygen Yield (Nm3/h) Load Adjustment Range (%) Water Consumption (t/h) Power Consumption (KWh/m3) Plot Area (m2)
VPSA-1000 1000 (~34 TPD) 50%-100% 30 Chat with us for details 468
VPSA-3000 3000 (~103 TPD) 50%-100% 70 Chat with us for details 572
VPSA-5000 5000 (~171 TPD) 50%-100% 121 Chat with us for details 648
VPSA-8000 8000 (~274 TPD) 25%-100% 205 Chat with us for details 1350
VPSA-10000 10000 (~342 TPD) 25%-100% 242 Chat with us for details 1350
VPSA-12000 12000 (~412 TPD) 25%-100% 258 Chat with us for details 1508
VPSA-15000 15000 (~514 TPD) 17%-100% 363 Chat with us for details 1890
VPSA-18000 18000 (~617 TPD) 17%-100% 387 Chat with us for details 2088
VPSA-20000 20000 (~686 TPD) 13%-100% 482 Chat with us for details 2800

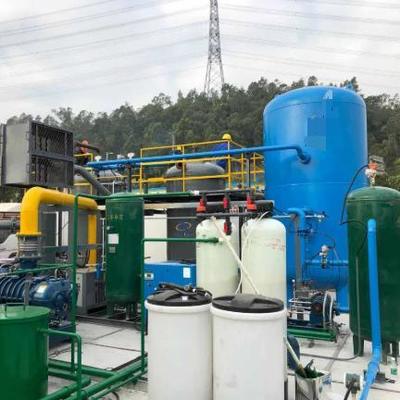

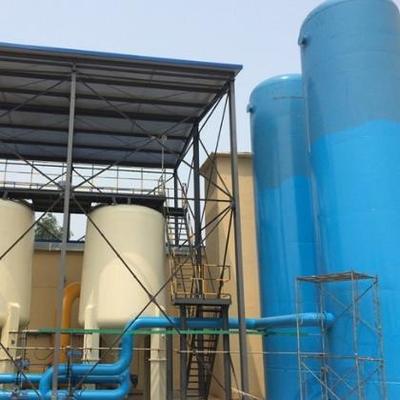

Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production 0 Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production 1 Energy-saving VPSA Oxygen Generator with Small Floor Area and Stainless Steel Inner Material for Efficient Oxygen Production 2
Operation Process
1. Filtered air is transported by the blower into adsorption towers (A or B) equipped with molecular sieve and activated alumina. As air flows through the molecular sieve fixed bed, nitrogen molecules are adsorbed while oxygen molecules and argon atoms pass through to the buffer tank for end use.
2. When molecular sieve particles reach adsorption saturation with nitrogen, the air inlet valve closes. Oxygen-rich air from the tower is used to purge the other tower being evacuated. After pressure drops to a specified value, the vacuum pump activates to discharge nitrogen.
3. Following vacuum processing, the system uses oxygen-rich gas from the other tower and buffer tank to completely regenerate the molecular sieve. After regeneration, the tower is pressurized with product gas in preparation for the next adsorption cycle.
Key Advantages
  • On-site oxygen production: Eliminates supply chain risks
  • Operational independence: No reliance on gas supply contracts
  • Compact footprint: Eliminates need for high-pressure cylinder or liquid dewar storage
  • Automated operation: Capable of long-term unattended operation with remote monitoring
  • Predictive maintenance: Advanced diagnostics and process management technology
In addition to VPSA Oxygen Generators, we also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. Our team is ready to assist you.
